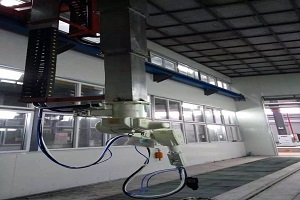

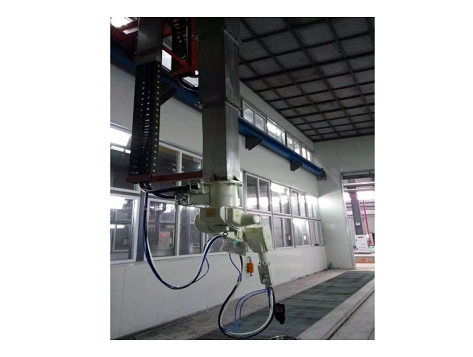

The six axis side wall painting robot is equipped with six axes, namely, x-axis, z-axis, s-axis, T-axis, v-axis and W-axis. Compared with the five axis robot, the v-axis: 360 ° rotation function of the small arm is added, which makes the sandblasting more flexible, accurate and efficient. Jiutong is an intelligent coating environmental protection solution service provider with more than 10 years of non-standard project experience. It can customize the painting robot solution according to the customer's on-site needs!
High efficiency: no intermittent operation, each shaft has high-speed motion performance, greatly optimizing the production beat, and high production efficiency
High precision: 5 servo motors, 1 DC motor, nozzle swing type, painting accuracy up to 0.1mm, repetitive positioning accuracy up to 0.01mm, ensuring consistent high-quality coating

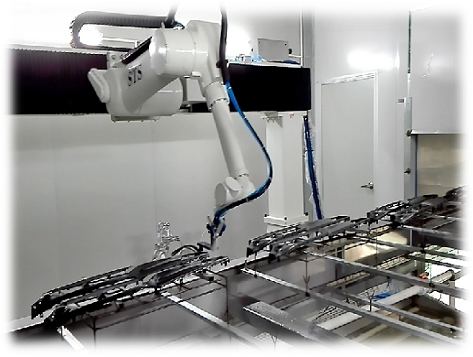

High flexibility: the robot can be customized; It can clean a single workpiece, or dynamically and synchronously track the conveyor belt, and cooperate with the production line to spray; Widely used, suitable for various special-shaped workpieces, with high utilization rate
Good spraying quality: the distance and angle of the nozzle can be continuously adjusted, and the amount of spraying oil can be flexibly controlled to ensure uniform coating, stable speed, good gloss and high product qualification rate
nergy saving and environmental protection: robot spraying, the air in the painting room can be recycled, which can greatly save ventilation power consumption and heat loss; The VOC treatment cost is saved. Since the air in the paint booth is recycled, the concentration of exhaust gas at the exhaust is increased to reach the concentration of exhaust gas desorbed after activated carbon adsorption, so the activated carbon adsorption equipment is saved.
Cost reduction: built in oil saving program, high efficiency and paint saving, saving 30% of paint; Compact structure, reduce space, reduce ventilation, and effectively save energy; Long service life, no wearing parts, simple maintenance, less wearing parts such as guide rail and belt than the five axis painting table

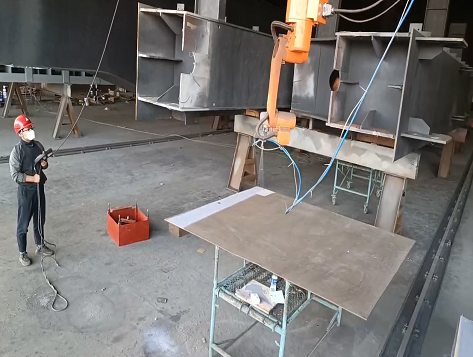

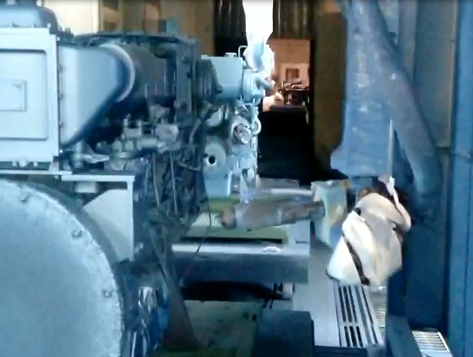

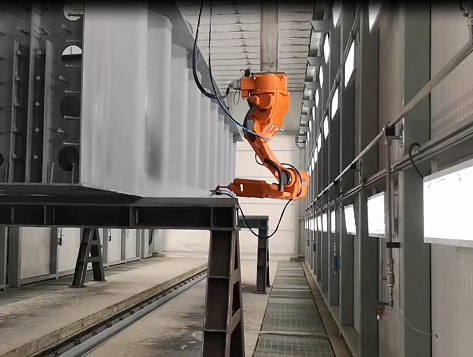

The side wall 6-axis painting robot is applicable to the painting / powder spraying operation of key parts and mechanical base parts such as automobiles, rail vehicles, passenger cars, special vehicles, transformers, wind power, construction machinery, machine tools, large petrochemical plants, ships, etc. the side wall painting robots are often arranged in pairs, one on each side of the workpiece.
 |  |  |  | |
| Serial number | axis name | axis function | motion range | motion speed |
|---|---|---|---|---|
| Axis1 | X axis | moves longitudinally along the operation room | 11-2=8（m） | 100-600mm/s |
| Axis3 | Z axis | moves vertically along the operation room | 8.5-3.8=4.5（m） | 100-300mm/s |
| Axis5 | S axis | major joint rotation axis | 160° | 1-6r/min |
| Axis6 | T axis | facet rotation axis | 240° | 1-6r/min |
| Axis7 | V axis | jib rotation | 360° | 5-30r/min |
| Axis8 | W axis | spray gun swing | ±180° | 5-30r/min |
Within 4 weeks after signing the contract, our company will provide the following technical data:
| Serial number | name number | Copies of paper version | Copies of electronic version | remarks |
|---|---|---|---|---|
| 1 | general drawing of equipment | 3 | 1 | |
| 2 | equipment foundation installation drawing and technical requirements | 3 | 1 | |
| 3 | equipment size, net weight and gross weight | 3 | 1 | |
| 4 | equipment power configuration requirements | 3 | 1 | |
| 5 | Installed power capacity of equipment | 3 | 1 |
After the final acceptance of the equipment, our company provides the following technical data:
| Serial number | name number | Copies of paper version | Copies of electronic version | remarks |
|---|---|---|---|---|
| 1 | Equipment operation manual | 3 | 1 | |
| 2 | Equipment safety operation and maintenance procedures | 3 | 1 | |
| 3 | General design drawing of each functional equipment | 3 | 1 | |
| 4 | Electrical design drawing | 3 | 1 | |
| 5 | Details and drawings of vulnerable parts | 3 | 1 | |
| 6 | Robot program | 1 | ||
| 7 | PLC program | 1 |
Our company is responsible for the on-site paternity training for the operation and maintenance personnel of the robot for 1 week. The relevant personnel trained will have the following skills:
1. Master the daily mechanical and electrical maintenance and repair of the equipment
2. Enable the operator to be familiar with various technical performances of the machine and precautions for safe production, so as to achieve the level of independent operation, programming, maintenance and repair
3. Be able to operate the machine skillfully and master basic programming methods
4. Master the setting and adjustment of machine process parameters
5. Master the daily maintenance and general troubleshooting of the machine
6. Understand the principle of control system and PLC program
1. Before the equipment leaves the factory, the Seller shall notify the buyer to conduct pre acceptance before leaving the factory
2. Final acceptance: the final acceptance shall be carried out one week after the trial production of the equipment reaches the design capacity specified in the contract and is put into operation
1. The warranty period of the system (except for robots) is 12 months from the date of acceptance by the end user. During the warranty period, the Seller shall be responsible for repairing or replacing parts for free due to product quality problems
2. During the warranty period, the Seller shall repair or replace all equipment failures or parts damage caused by equipment quality problems free of charge, and give a reply and solution within 4 hours after receiving the buyer's failure notice, and try to arrive at the site within 24 hours if necessary
3. After the expiration of the warranty period, the seller is obliged to be responsible for the lifelong paid service of the product and provide spare parts at a preferential price
